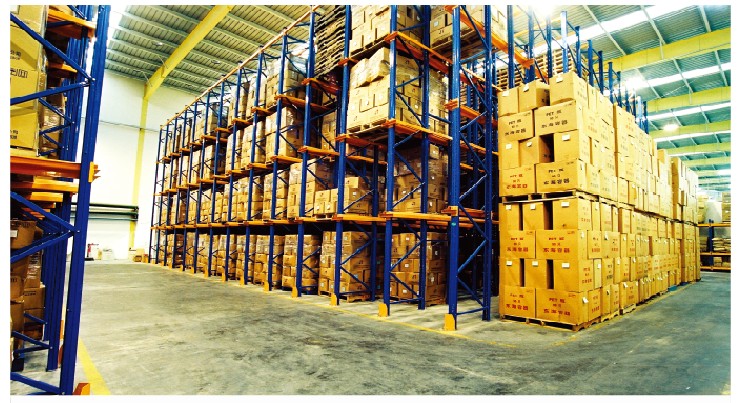

1. The utilization of space can reach 80%, and the storage capacity can be doubled.
Cancel the passage between the shelf rows, merge the shelves together, and create the same cargo layer in the same column to maximize the use of storage capacity. The cargo passage enters and exits from the same side of the shelf, and the forward forklift can easily enter the middle of the shelf to enter the cargo without occupying multiple passages.

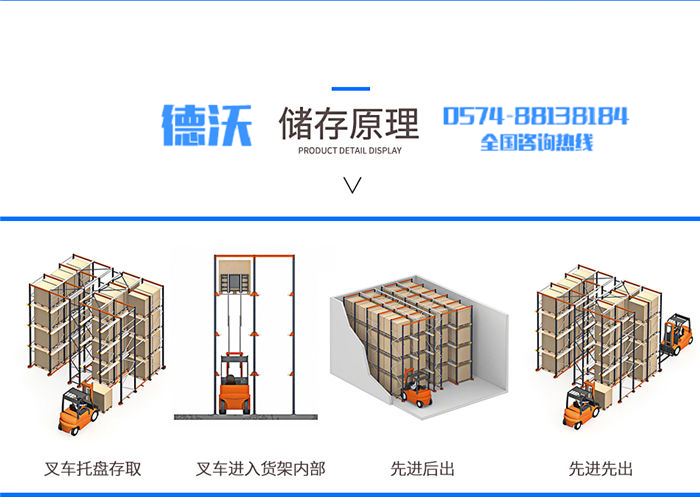

2. Easy to access, save before take, save before take.
Using pallet as storage unit, using advanced backward or first-in-first-out driving mode: using forklift truck from the same side into the cargo channel into the material, into the advanced exit, from the first entry cargo lane into the first cargo Lane out of the first cargo lane.
3. Fully assembled structure to improve forklift efficiency
All adopt full assembly structure, disassembly and assembly, transportation, adjustment, movement and other simple and convenient operation. The total depth of the shelf in the wall area can be designed as 7 pallet depths, and the total depth of the shelf in the middle area can reach 9 pallet depths, so as to improve the efficiency and reliability of the forklift passage.

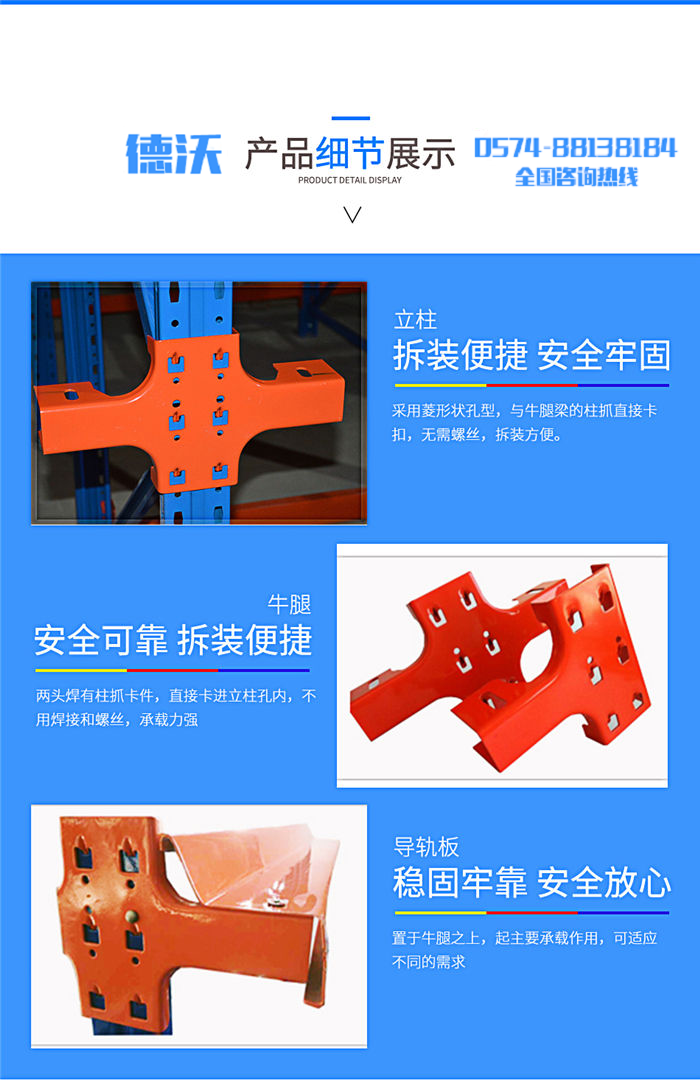

4. Arbitrarily adjust the spacing between the upper and lower layers to suit different specifications of goods.
Through adjustable pillars, the spacing and layers between legs can be adjusted according to the actual height of the goods.
