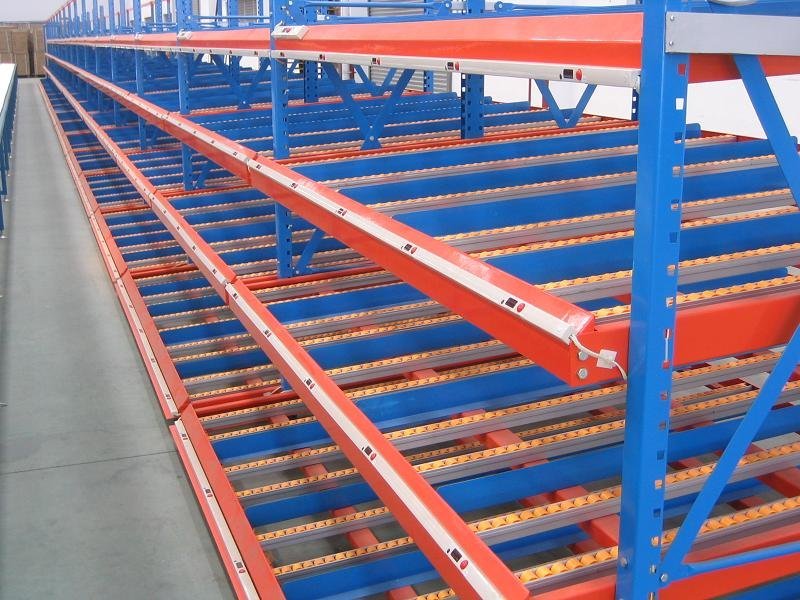

Fluent shelves are usually evolved from medium-sized cross-beam shelves. Roller aluminium alloy or sheet metal flow rods are placed between the front and rear beams of each shelf and at a certain slope (about 30 degrees). Goods are usually packed in paper or put into plastic turnover boxes, which realize the flow of goods and FIFO through self-weight. Goods are transported by trolley. It is convenient to enter and leave manually. The load of each layer of the unit shelf is usually less than 1000KG. The shelf height is less than 2.5 meters. It is suitable for process transformation on both sides of assembly line, picking operation in distribution center, etc. It can be equipped with electronic tags to realize information management of goods.

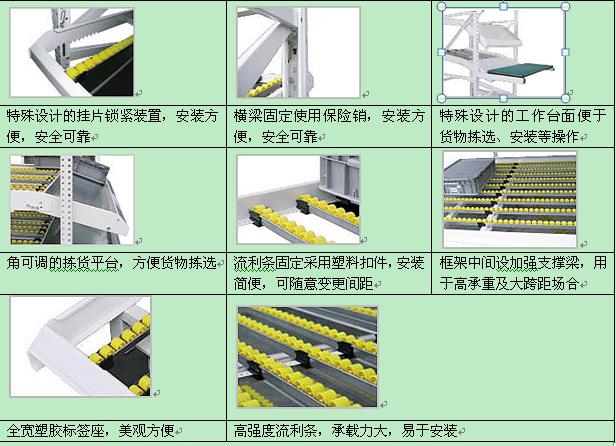

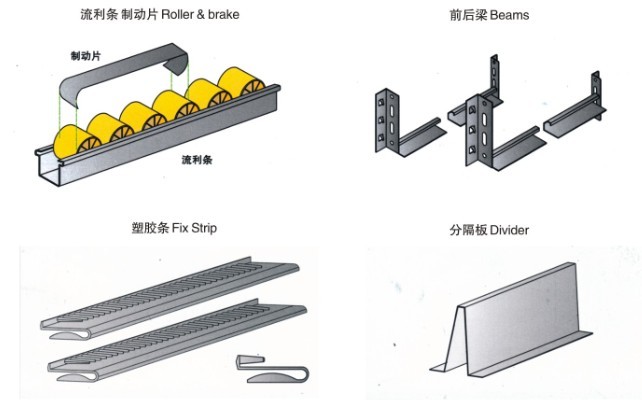

Structural characteristics of fluent shelves: fluent strips of fluent shelves are directly connected to front and rear beams and intermediate support beams, and fluent shelf structural beams are directly connected to pillars. The installation inclination of fluent strips depends on the size and weight of containers and the depth of fluent shelves, usually 5% to 9%. The load-carrying capacity of the flow roll is 6kg/piece. When the goods are heavy, 3-4 smooth strips can be installed in a raceway. A supporting beam is usually installed every 0.6 meters in the depth direction to increase the rigidity of the flow belt. When the raceway is long, the raceway can be used to separate the raceway. Brake pads need to be installed at the brake end to slow down the speed of the cargo and reduce the impact.
Several characteristics of the fluent shelf system:
1. Complete assembly structure, free combination, convenient installation and disassembly.
2. Adopt roller-type aluminium alloy and other streamline lines, realize first-in and first-out with cargo weight.
3. Easy to access, suitable for both sides of assembly line, distribution center and other places.
4. It is suitable for the storage of a large number of similar commodities, with high space utilization, and suitable for auto parts factories.
5. Electronic labels can be equipped to realize the information management of goods.
Scope of Fluent Shelf Use:
Fluent shelves are widely used in manufacturing, commerce, distribution centers, assembly shops and warehouses, with high delivery frequency. Tank rack: Aluminum alloy rollers, sheet metal and other fluent strips, using platform weight, to achieve first-in-first-out, easy storage, suitable for distribution centers on both sides of the assembly line.
