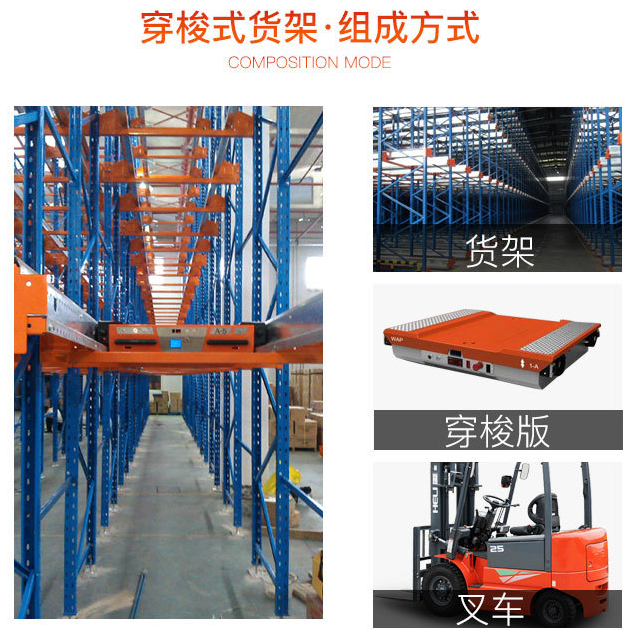

Shuttle rack system is a high density storage system, including rack, trolley and forklift. This efficient storage method is to improve the utilization of warehouse space and bring new choices to customers.
Shuttle rack function:

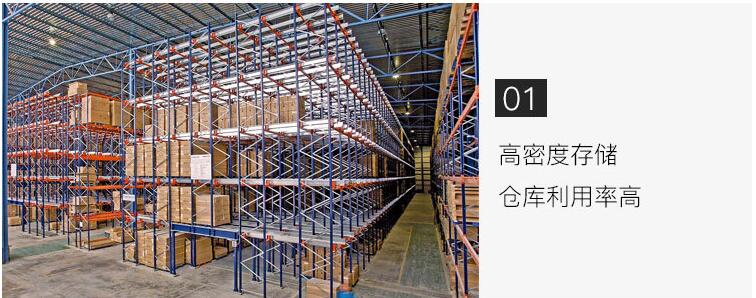

High Density Storage, High Utilization Rate of Warehouse

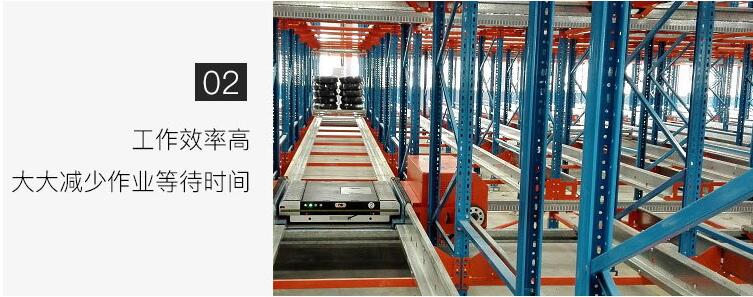

High working efficiency, greatly reducing the waiting time for work

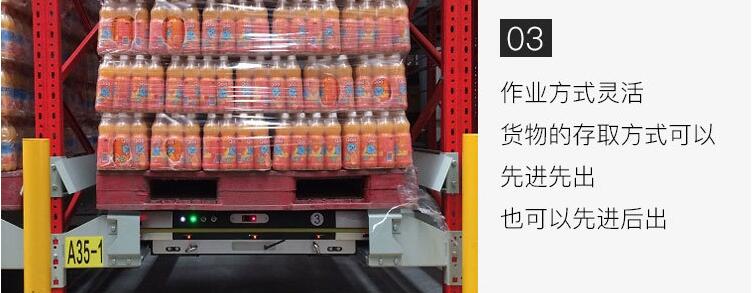

Flexible operation mode, goods can be first come, first served or advanced
Safety, reduce shelf collision and improve safety in production
_

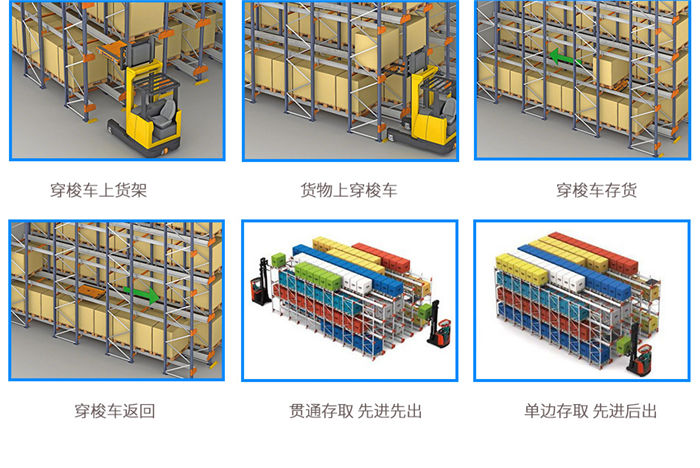

How does a shuttle rack work?

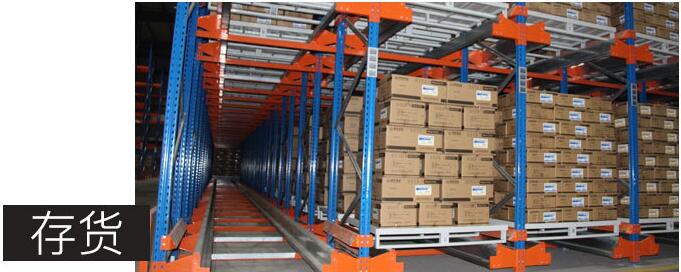

Inventory: Forklift trucks put goods at the front end of the rack lane. WAP-1 shuttle car operated by radio remote control can transport pallet cargo to the guide rail.

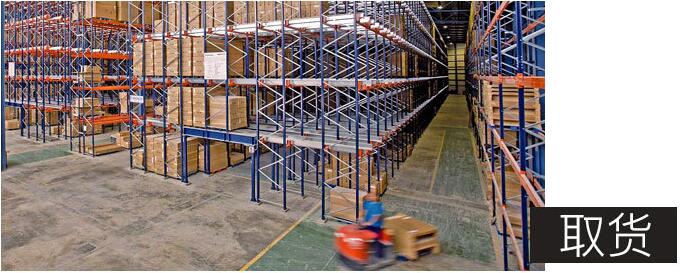

Pick-up: WAP-1 shuttle truck moves pallets deep in the shelf to the front of the shelf, and uses forklift truck to remove pallet cargo from the shelf;
Mobile WAP-1 shuttle truck: The shuttle truck can be placed on different lanes through forklift trucks, and multiple lanes can share multiple WAP-1 shuttle trucks. The number of WAP-1 shuttles is determined by a combination of factors, such as road depth, total cargo, shipment volume and frequency.
Load: 1000-1500kg
Running speed: Load-free 0.7-0.9 m/s
Running speed: full load 0.6-0.8 m/s
Power unit: lithium-manganese battery
Rated voltage: 26 Volts
Battery life: more than 8 hours
Induction range: remote sensing range of 50 meters
The scope of application of shuttle shelves:
A large number of samples: food, beverage, chemicals, tobacco and other large single varieties, relatively single industry
Cold Storage Operation: Reduce Low Temperature Operation Time, Improve Working Efficiency and Safety
Time limit management: warehouses requiring strict first-in-first-out operations.
Increase storage capacity: limited storage space, need to maximize the use of Space Warehouse
