Functional description:

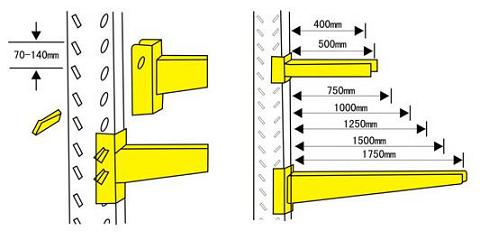

Cantilever shelves are suitable for storing long materials, annular materials, sheets, pipes and irregular goods. Cantilever shelf columns are mainly made of H-shaped steel or cold-rolled steel. The cantilever adopts square tube and cantilever rack, cold rolled steel or H-beam. The cantilever and the column are connected by bolts or bolts. The base and column are bolted. The base is made of cold rolled steel or H-beam. The cargo passage is operated by forklift, driving or manual. The height of the rack is usually less than 2.5 meters (up to 6 meters if the forklift is used), the length of the cantilever is less than 1.5 meters, and the load of each arm is usually less than 1000 KG. The shelves are mainly used in machinery manufacturing and building materials supermarkets. After adding shelves, it is especially suitable for warehouses with small space and low height. It is easy to manage and has a wide field of vision. Compared with ordinary shelf, the utilization ratio is higher. According to the carrying capacity, it can be divided into light weight, medium weight and weight. Three types.

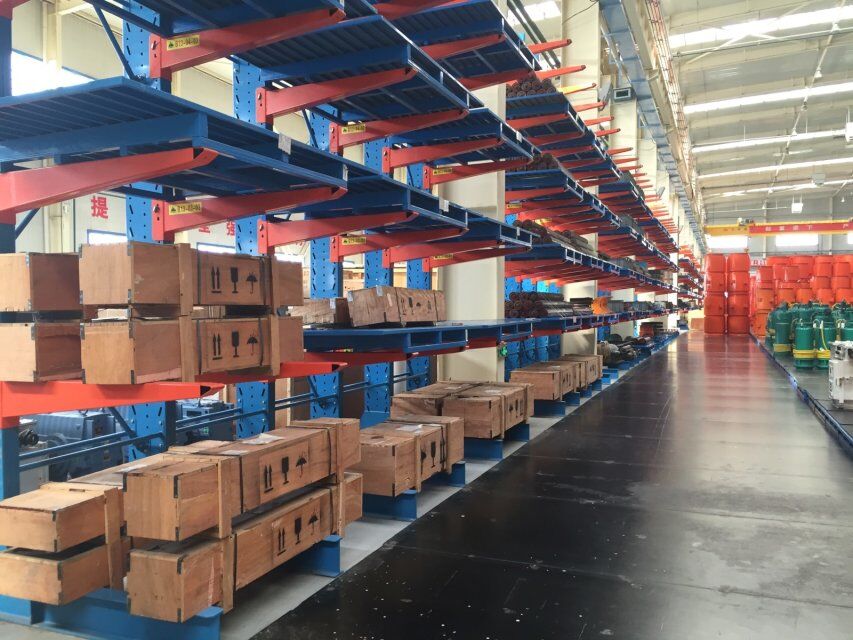

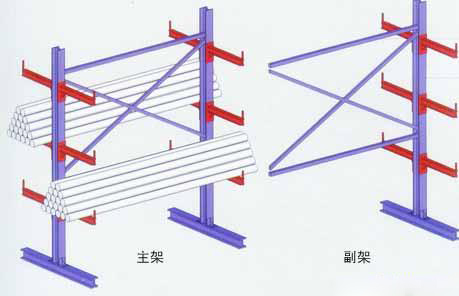

Cantilever shelves are ideal solutions for storing large, loose or other special products. Cantilever shelves have one arm and two arms, which effectively store wood, pipes, strips and other similar products. Cantilever shelf is a kind of shelf for long objects, which is composed of cantilevers on traditional shelf pillars.
Several characteristics of cantilever shelf system:
1. Applicable only to long goods or long goods.
2. It is necessary to cooperate with handling equipment with wide fork distance, such as side forklift with larger forklift distance.

3. Shelf height is limited, generally less than 6 meters.

4. The utilization rate of space is low, about 35% - 50%.

5. Storage type: long bar and long bar.
