Double-sided cantilever shelves are one of the categories of storage shelves. Special profile column and high strength cantilever are used to store all kinds of long materials, rings, plates and irregular materials.
Cantilever can be unilateral cantilever shelf or bilateral cantilever shelf. It has the characteristics of light structure and strong bearing capacity. The carrying capacity of a single arm can reach 1000kg. The special reinforced column structure can withstand the pressure of 2000-3000kg. The design of the post-tension improves the overall stability of the shelf, simple installation and complete accessories. Composite structure, special profile column, design back pull, increase stability, use high-strength cantilever (arm can be one-sided or two-sided), lightweight structure, good bearing capacity, high space utilization; after adding shelves, it is especially suitable for warehouses with small space and low height. It is easy to manage and has a wide field of vision. Compared with ordinary shelf, the utilization ratio is higher. According to the carrying capacity, it can be divided into three types: light, medium and heavy.
Double-sided cantilever rack features:
Double-sided cantilever rack, single-arm and double-arm, special column profiles, design back reinforcement, high-strength cantilever, each arm can withstand more than 2T, height adjustment per 100mm unit up and down.

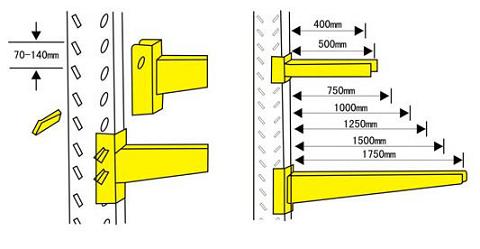

1. The height of each layer can be adjusted freely by 100 mm.
2. The cantilever is fixed on the column and loaded by the cantilever.
The material of double-sided cantilever rack is cold-rolled steel plate, and the surface is baked or sprayed at high temperature.
Double-sided cantilever rack application:

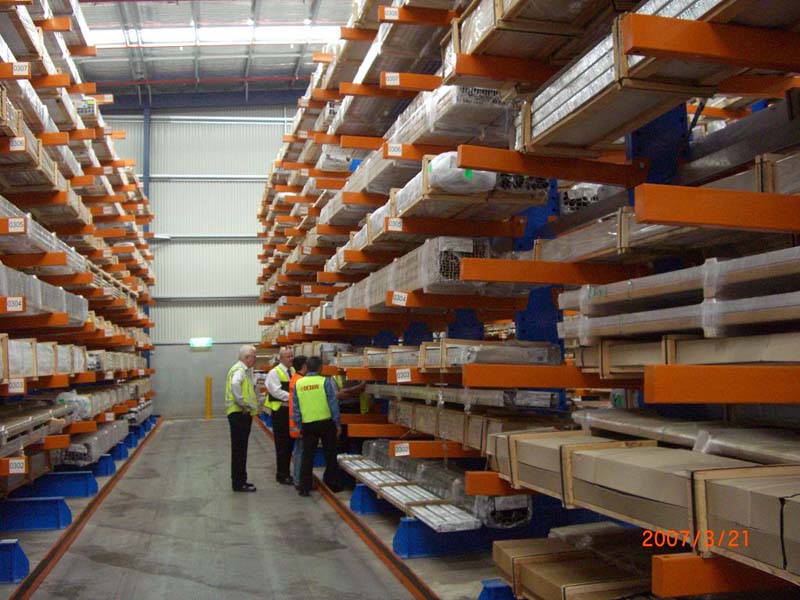

Composite structure, with the advantages of convenience, light weight, good carrying capacity and high space utilization, is suitable for small space, low height warehouse, convenient management, wide field of view, and is often used for storage of long materials, sheets, rings and conventional goods.
Double-sided cantilever rack production process:
1. Using square tube production: According to the corresponding loading requirements of cantilever layer, the cantilever shelf first chooses the square tube that meets the layered requirements, and cuts it into the required size. One end is welded with anti-skid guard plate, and the other end is welded with U-shaped column connectors. Make.

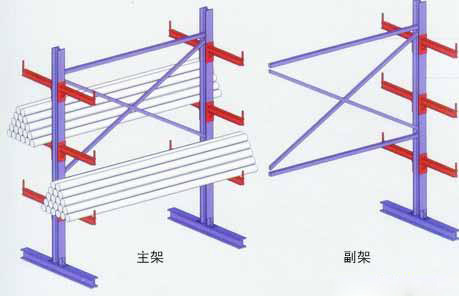

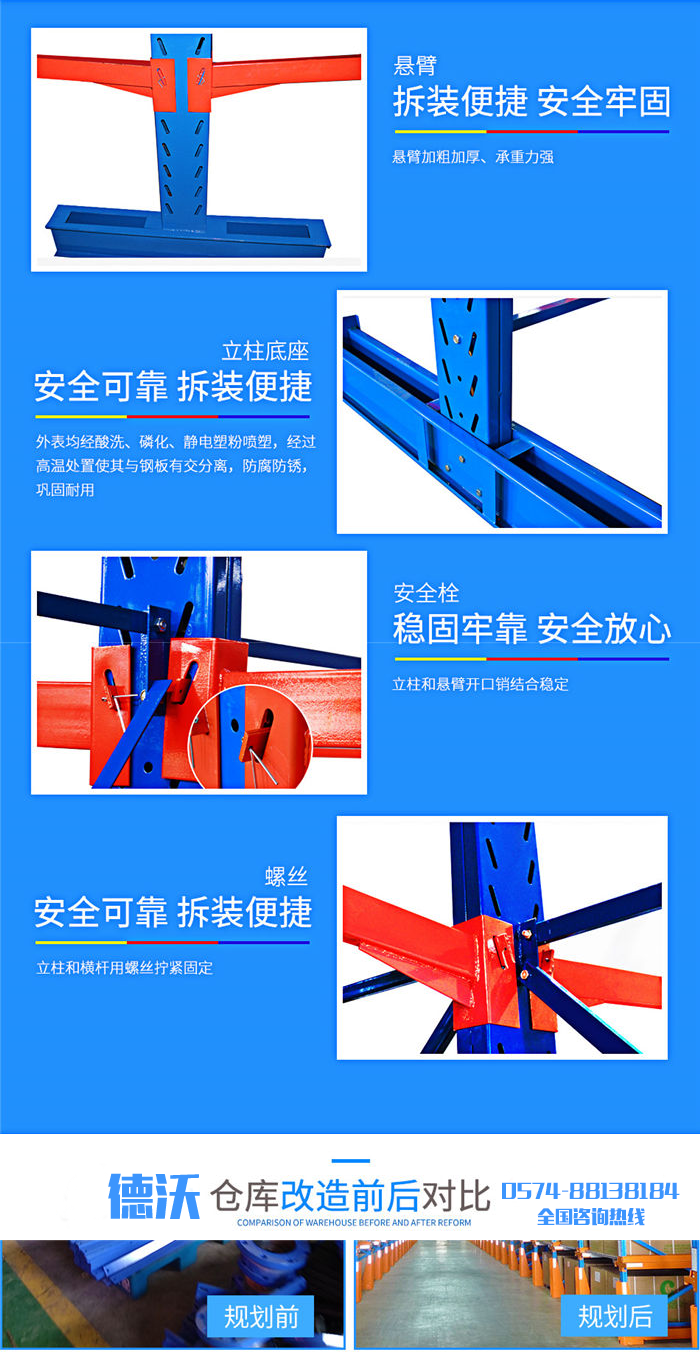

2. Made of C-section steel: According to the corresponding load requirements of cantilever layer, the cantilever shelf first chooses C-section steel specifications, after selection, two C-section steel butt welding, welding the other end to connect U-shaped column connectors. Cantilever columns and columns are connected by connecting rods, which are usually made of rectangular tubes. In order to increase safety and stability, a flat iron backing is applied to the connecting rod to tightly fix the column.

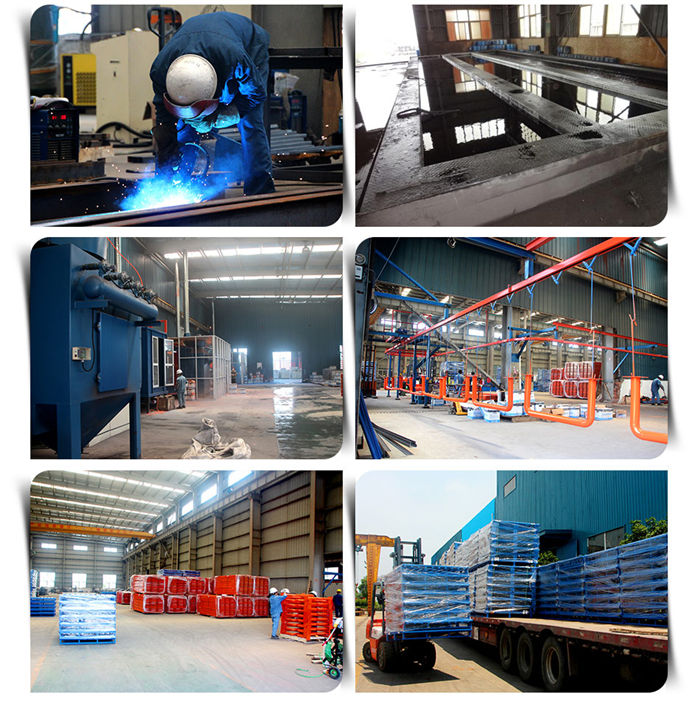

3. All double-sided cantilever shelf components are semi-finished after production, and will be sprayed through the last process. Before spray forming, shot blasting machine first takes shot peening treatment, degreasing, rust removal, and then spray forming. The package will be delivered after completion.
